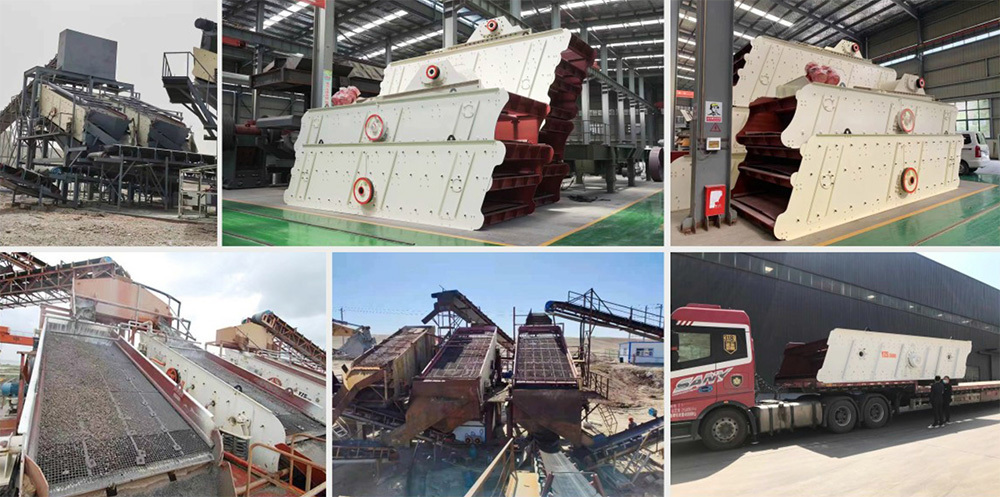

Circular vibrating screen

The circular vibrating screen is called circular vibrating screen for short because its motion trajectory is similar to a circle. The circular vibrating screen is a new type of vibrating screen with multiple layers and high efficiency. The circular vibrating screen (circular vibrating screen) uses an eccentric block to adjust the amplitude, has a long material screening line, and has many screening specifications. The circular vibrating screen is widely used in product classification in mining, building materials, transportation, energy, chemical and other industries. It has the advantages of strong excitation force, simple structure, easy maintenance, stable operation, large processing capacity, long life, and low noise.

Excellent production

After-sales worry-free

Quality Assurance

Product Classification:

Mining crushing and screening equipment

WhatsApp:+86-15038279844

Get Quote

Related Products

Product Introduction

The circular vibrating screen is called circular vibrating screen for short because its motion trajectory is similar to a circle. The circular vibrating screen is a new type of vibrating screen with multiple layers and high efficiency. The circular vibrating screen (circular vibrating screen) uses an eccentric block to adjust the amplitude, the material screening line is long, and the screening specifications are many. The circular vibrating screen is widely used in product grading in mining, building materials, transportation, energy, chemical and other industries. It has the advantages of strong excitation force, simple structure, convenient maintenance, stable operation, large processing capacity, long life and low noise.

Features

1. The eccentric block is used as the excitation force, and the excitation force is strong;

2. The screen beam and the screen box use high-strength bolts, which are simple in structure and easy and quick to maintain; the tire coupling is used, the connection is natural, and the operation is stable;

3. The small amplitude, high frequency, and large inclination structure make the machine have high screening efficiency, large processing capacity, long life, low power consumption, and low noise.

Circular Vibrating Screen Technical Parameters

Model	Screen surface specifications(mm)	Screen layer number	Screen size(mm)	Feed size(mm)	Production Capacity(t/h)	Power(kw)	Vibration frequency(r/min)	Double Amplitude(mm)
2YZS1237	3700×1200	2	≤400	3-50	30-100	5.5	970	5-9
3YZS1237	3700×1200	3	≤400	3-50	30-100	7.5	970	5-9
2YZS1548	4800×1500	2	≤400	3-100	30-275	15	970	5-9
3YZS1548	4800×1500	3	≤400	3-100	30-275	15	970	5-9
2YZS1848	4800×1800	2	≤400	3-100	56-330	18.5	970	5-9
3YZS1848	4800×1800	3	≤400	3-100	56-330	18.5	970	5-9
4YZS1848	4800×1800	4	≤400	3-80	56-330	22	970	5-9
2YZS1860	6000×1800	2	≤400	3-100	65-586	18.5	970	5-9
3YZS1860	6000×1800	3	≤400	3-100	65-586	22	970	5-9
4YZS1860	6000×1800	4	≤400	3-100	65-586	30	980	5-9
2YZS2160	6000×2100	2	≤400	3-100	81-720	22	980	5-9
3YZS2160	6000×2100	3	≤400	3-100	81-720	30	970	5-9
4YZS2160	6000×2100	4	≤400	3-100	81-720	30	980	5-9
2YZS2460	6000×2400	2	≤400	3-150	100-810	22	970	5-9
3YZS2460	6000×2400	3	≤400	3-150	100-810	30	980	5-9
4YZS2460	6000×2400	4	≤400	3-150	150-850	37	980	5-9
2YZS2870	7000×2800	2	≤400	5-100	120-680	22×2	750	8
3YZS2870	7000×2800	3	≤400	5-100	180-720	22×2	750	8
2YZS3070	7000×3000	2	≤400	5-100	200-700	37	750	8
3YZS3070	7000×3000	3	≤400	5-100	230-800	45	750	8
